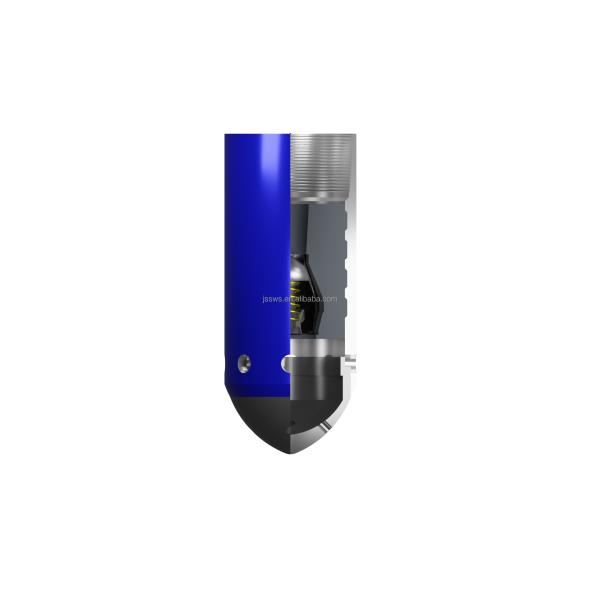

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

Place of Origin : China

Brand Name : SWS

MOQ : 1

Weight : 5 kg

Core components : Carbon steel

Valve type : single valve & double valve

Machine Type : Drilling Tool

Processing Type : Forging

Size range : 2-3/8~20"

Thread Type : BTC\LTC\ Special Thread\EU\NU

Material : Aluminum Alloy

Hi Flow valve sizes : 70mm and 90mm

Valve body material : Fibre phenolic

Pressure rating : 70MPa

Temperature rating : 204°C

Spring material : Phospher bronze C510

Plunger seal material : HNBR

Min Bore Parameter : 2"

Contact Now

Company Profile

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

CORPORATE BRIEF

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

Certifications

Product Description

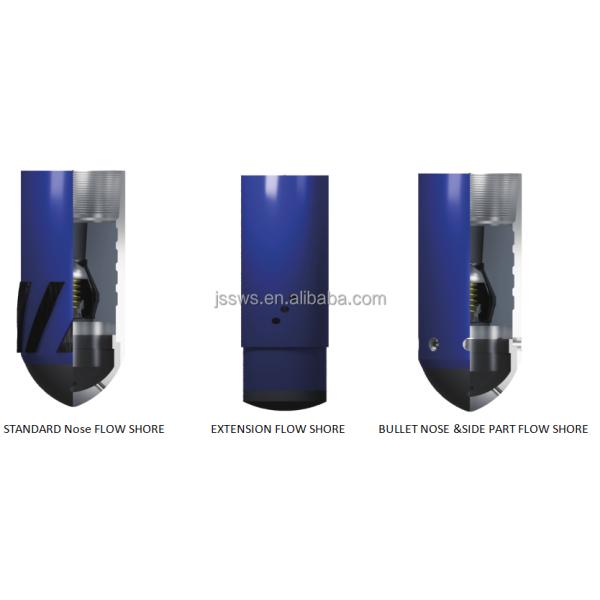

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guids the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.

Hi Flow valves to reduce fluid erosion and minimize pressure drop. Hi Flow valves are manufactured in two sizes 70mm and 90mm. PDC drillable composite plastic materials used for the valve components. Standard seal rated to 150°C with optional 204°C seal.

Valve body moduled with fibre phenolic,70MPa and 204°C seal. Spring purchased from Canada victoryspring Company,phospher bronze C510 material,high restoring force and drillable. Plunger sealtop moduled with HNBR,70MPa and 204 seal.

Specification

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in2)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2” LCSG	4351
		7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
		9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
		13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
		7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
		9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
		13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Our Factory

Device image

Exhibition

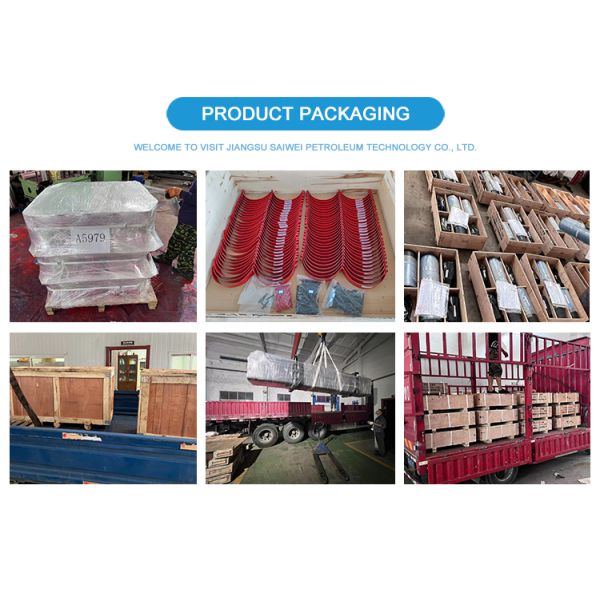

Product packaging

FAQ

Q1、When can I get the price? A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority. Q2、Could I have prices of your products? A: Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours. Q3、Can I get a lower price if I order large quantities? A: Yes, cheaper prices with more bigger quantity orders. Q4、Do you inspect the finished products? A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. Q5、What about the lead time for the mass production? A: Honestly, it depends on the order quantity and the season you place the order.
